In industrial cutting and material-processing machines, accurate measurement of material movement is critical for achieving consistent cutting lengths and reducing material waste.
One interesting approach is using a digital measuring wheel to convert mechanical movement into digital distance measurements that can be processed by an industrial control system.
The basic concept is straightforward:
Material movement → Measuring wheel → Encoder → Embedded controller → Digital measurement → Machine control
However, making this reliable in an industrial environment involves several engineering challenges.
Measurement accuracy
The measuring wheel needs to maintain consistent contact with the moving material. Wheel diameter, surface characteristics, mechanical pressure, slippage, and alignment can all influence measurement accuracy.
Encoder selection
The encoder resolution determines how finely the system can detect movement. The appropriate encoder depends on the required measurement accuracy, material speed, and mechanical configuration.
Signal processing
Industrial environments can introduce electrical noise and vibration. Reliable pulse detection and signal processing are therefore important for maintaining stable measurements.
Mechanical integration
The electronics are only part of the solution. The measuring mechanism needs to be mechanically integrated with the cutting machine while maintaining consistent contact with the material.
Industrial reliability
A production system needs to operate reliably under continuous machine operation. Enclosure design, connectors, cable management, environmental conditions, and component selection all become important.

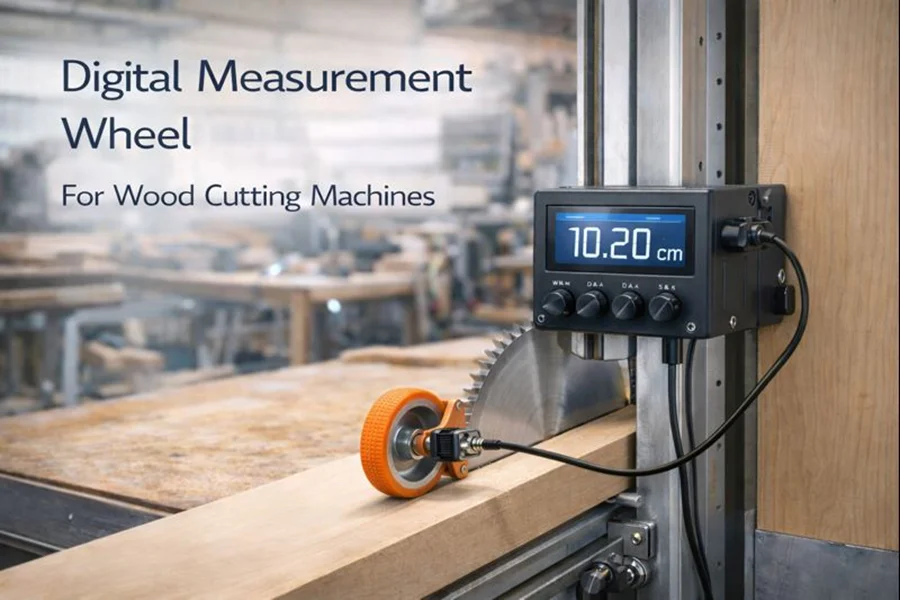

We recently worked on a digital measuring wheel solution designed for an industrial cutting machine, combining mechanical measurement with embedded electronics and digital processing.
Project example:
Digital Measuring Wheel for Industrial Cutting Machines
I'm interested in hearing from other engineers working with industrial automation:
How are you currently measuring material length or linear movement in your machines?
Do you prefer measuring wheels, rotary encoders, laser measurement, or another approach?
